Cloudscape® Ceiling Tiles

|

Cloudscape® Ceiling Tiles absorb noise and block sound transmission.  These ceiling tiles are designed to fit into existing 2' x 2' suspended drop tile ceiling grid systems.  They may also retrofit in a 2' x 4' ceiling grid by installing cross tees. Cloudscape® ceiling tiles may also be ordered as a full 24" x 24" size, un-backed for adhesive mounting directly to walls or ceilings.



Ordinary ceilings take on new levels of visual excitement with these sculptured tiles. They are available in five different patterns plus a non-patterned look to enable you to "mix and match" for your own designs.

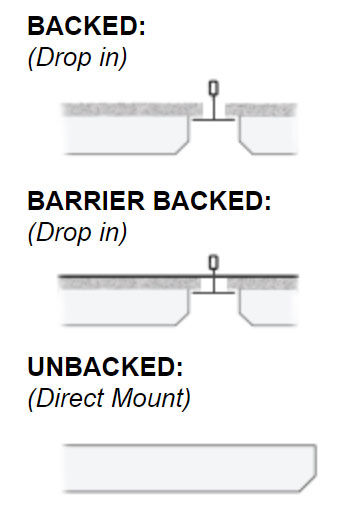

CONFIGURATIONS:
BACKED:
 (Drop in)
 		  1˝" Melamine + ˝" Backer Ceiling Tile
Size: 23-3/4" x 23-3/4" (6 Tiles per box)
Mount: Drop into existing T-bar Grid
 Cloudscape Backed- Specs.pdf

BARRIER BACKED:
 (Drop in)

   1˝" Melamine + ˝" Backer +  BlockAid®
Size: 23-3/4" x 23-3/4" (6 Tiles per box)
Mount: Drop into existing T-bar Grid
Cloudscape Barrier- Specs.pdf
UNBACKED:
 (Direct Mount)
 		   1˝" Melamine Tile
Size: 24" x 24" (18 Tiles per box)
Mount: Direct to wall or ceiling
(adhesive by others)
 Cloudscape UnBacked- Specs.pdf

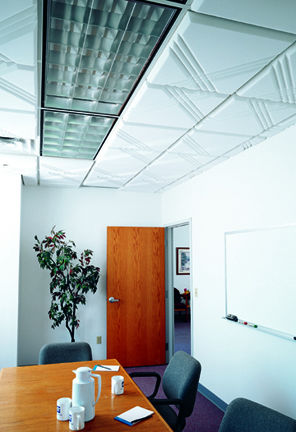

Cloudscape Ceiling Tiles absorb noise and block sound transmission

Acoustical Ceiling Tiles available in 5 different patterns plus smooth.




Available Sizes:
24" x 24" (nominal)
Specify grid when ordering:
9/16 or 15/16

Available Colors:
White
Other Colors Available -
Contact Acoustics First


Fire Rating:  Class 1

Material Components:


  • Open Cell Melamine Foam

  • Density:  0.7 pounds/cubic foot

  • Flammability:  Meets UL94V-0

  • Flame Spread = 10

  • Smoke Developed = 50

  • Tensile Strength = 8 PSI

Choose from the following Patterns: (Click photo for larger view)

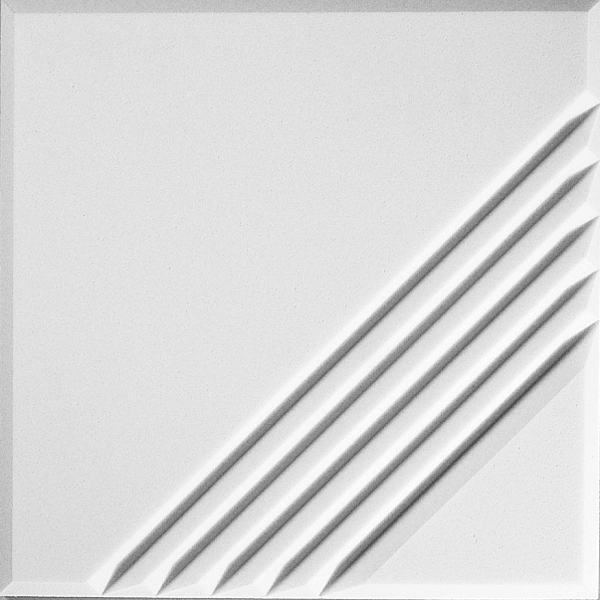

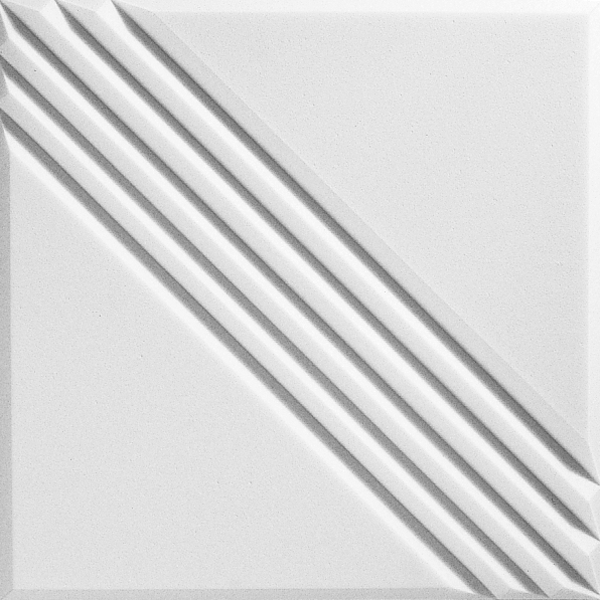

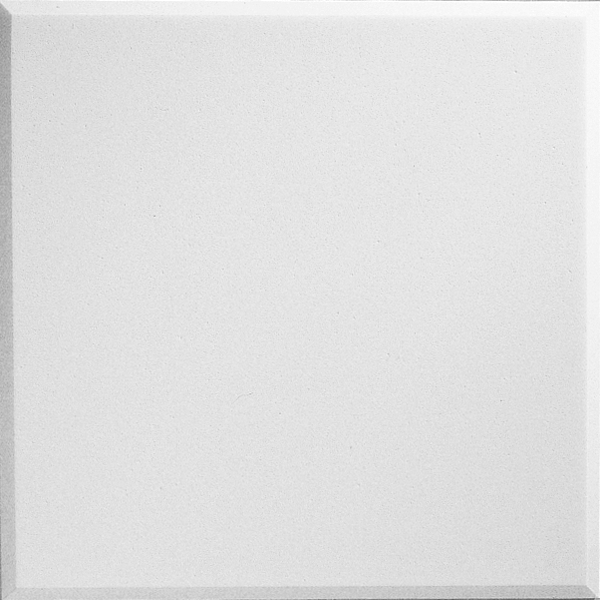

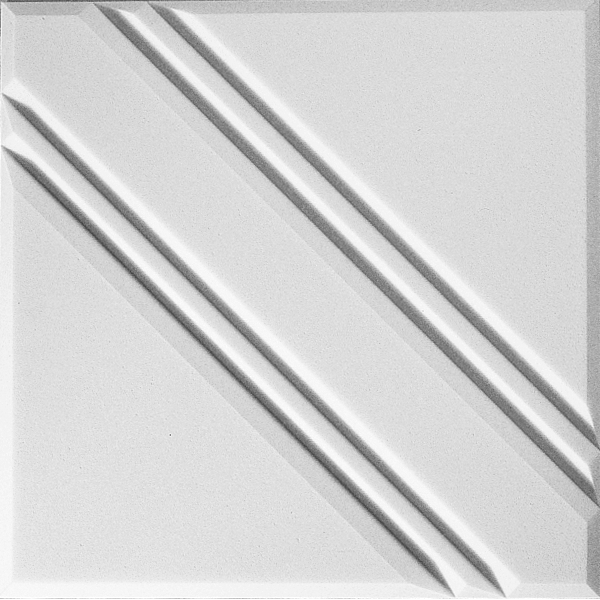

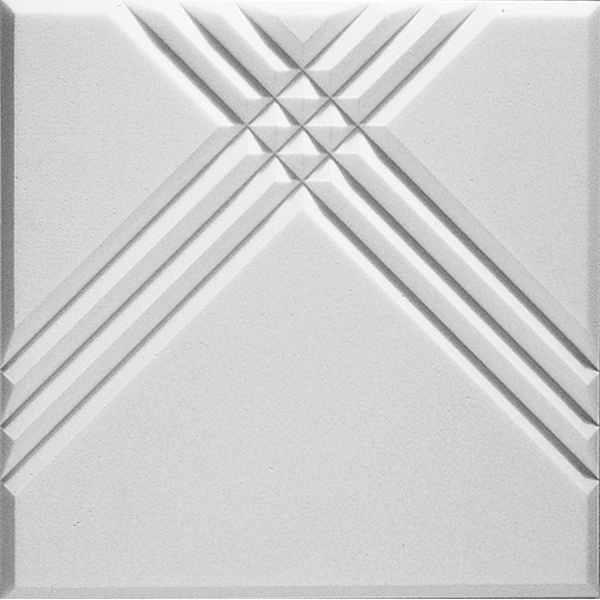

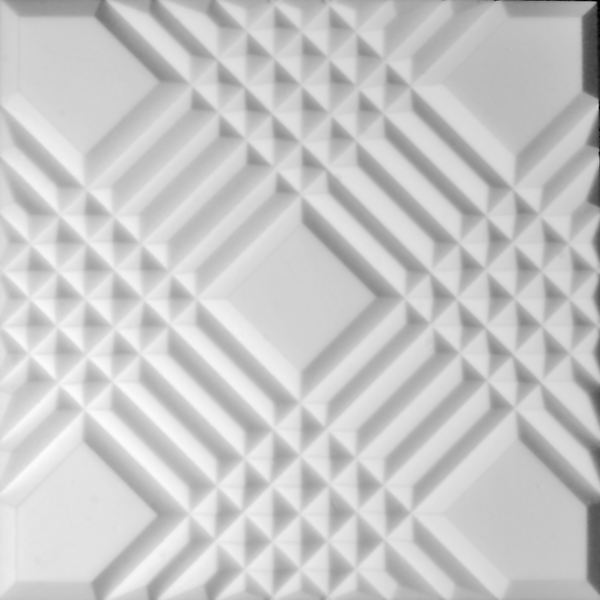

Cloudscape Atlus Ceiling Tiles absorb noise and block sound transmission Cloudscape Cirrus Ceiling Tiles absorb noise and block sound transmission Cloudscape Cumulus Ceiling Tiles absorb noise and block sound transmission Cloudscape Fog Ceiling Tiles absorb noise and block sound transmission Cloudscape Nimbus Ceiling Tiles absorb noise and block sound transmission Cloudscape Stratus Ceiling Tiles absorb noise and block sound transmission
Altus Cirrus Cumulus Fog Nimbus Stratus
Below are some sample patterns that can be created using the above patterns.
Altus Pattern (example) Cirrus Pattern (example) Cumulus Pattern (example)
Fog Pattern (example) Nimbus Pattern (example) Stratus Pattern (example)

Sound Absorption Coefficients
Mounting 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
Un-Backed 0.26 0.60 0.64 0.93 0.97 0.93 0.80
Backed 0.22 0.44 0.85 0.95 0.97 0.95 0.80
