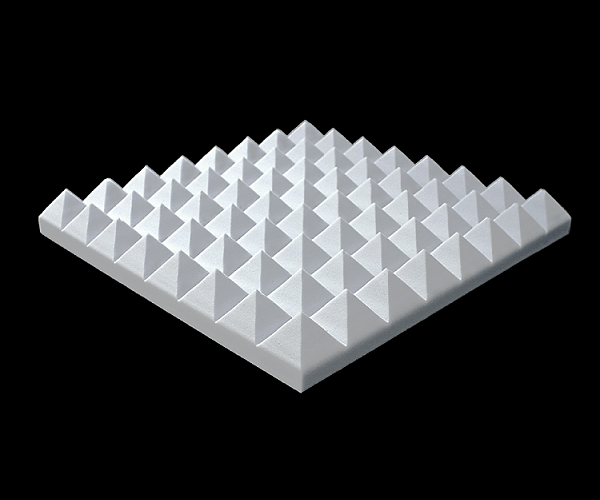

FireFlex™ Pyramid Acoustical Foam

|

FireFlex™ panels and hanging baffles are uniquely suited for environments where temperatures are high, sparks or other hot materials may fly, large numbers of people congregate, or high technology is used. It withstands constant temperatures up to 320°F, as well as meeting all Class 1 regulations for flame spread, smoke density, and fuel contribution.



FireFlex™ materials are constructed of lightweight, porous acoustic melamine. The material's internal structure is a spacious cellular complex of slim, flexible webs. These elastic filaments are fiber-free and completely open-celled.



Class 1 Acoustical Foam

Material Components:

  • Open Cell Melamine Foam

  • Density:  0.7 pounds/cubic foot

  • Flammability:  Meets UL94V-0

  • Flame Spread = 10

  • Smoke Density = 50

  • Tensile Strength = 8 PSI

Each Foam Pyramid is identical to
the others, allowing for seamless appearance when installed.


Available Sizes:
2", 3" and 4" Thickness
2' x 2' Sheets

Available Colors:
(Note that color will vary from below according to your monitor settings):


Other Colors Available -
Contact Acoustics First

Light Grey

Sound Absorption Coefficients
Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
2" 0.14 0.32 0.72 1.01 1.05 1.08 0.80
3" 0.44 0.48 1.19 1.12 1.16 1.16 1.00
4" 0.39 0.60 1.21 1.14 1.16 1.13 1.05
