HiPer Panel, Flat Panel Diffuser |
| |
HiPer Panel®,
Flat Panel Diffuser (US Patent # 7,314,114)
|
|

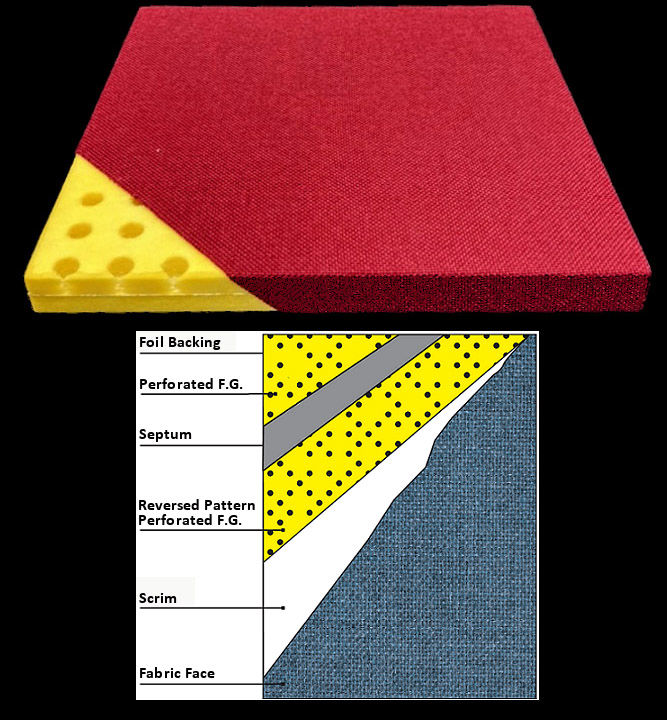

Click photo for larger view: |
 |
|
|
|
|
|
Please include a list of quantities &
sizes. |
|
|
Fabric Finish:
Guilford of
Maine FR701 2100
(Click for Chart) |
|
|
Edge Design:
Square |
|
|
Thickness:
1" and 2"
(Standard)
4" (Laminated with additional
substrate.) |
|
|
Typical Sizes:
Ceiling Tiles - 2' x 2' or 2' x 4'
(nominal) for T-Bar Suspended Grids.
Wall Panels - Up to 4' x 10' with
pattern repeating in 2' x 2' increments. |
| |
| Fire Rating: |
|
Class A |
|
|
|
The HiPer Panel®,
(Flat Panel Diffuser) combines absorption and
diffusion into one sound panel. This device is
similar in appearance to standard fabric-covered
acoustical wall panels, such as Sonora®, and can
be intermixed with them.
Acoustical performance differs significantly
from outward panel appearance. The patented

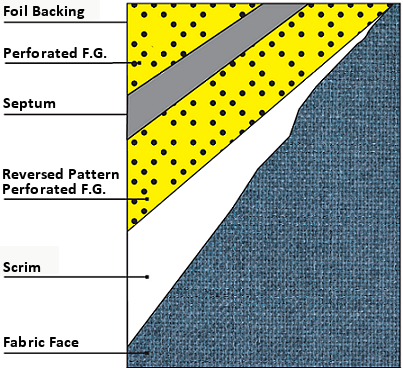

internal structure uses two layers of
absorption, separated by a barrier septum, to
form a low-profile, composite absorber /
diffuser product.
The layers have a pattern of wells that yield an
equal distribution of absorptive and reflective
regions, both vertically and horizontally. Their
constructive and destructive interference with
incident sound, produced by the varied
hole-pattern combinations, creates significant
sound scattering in the critical
mid-frequencies. |
|
|
|
 |
|
|
|
Sound Absorption Coefficients |
|
Thickness |
125 Hz |
250 Hz |
500 Hz |
1000 Hz |
2000 Hz |
4000 Hz |
NRC |
|
1" -
Type A |
0.09 |
0.21 |
0.72 |
0.79 |
0.91 |
1.03 |
0.65 |
|
1" - E400 |
0.43 |
0.28 |
0.51 |
0.76 |
0.99 |
1.10 |
0.65 |
|
2"
- Type A |
0.23 |
0.83 |
0.78 |
1.01 |
.90 |
0.78 |
0.90 |
|
| |
|
Random Incidence Sound Scattering |
|
|
125 Hz |
250 Hz |
500 Hz |
1000 Hz |
2000 Hz |
4000 Hz |
|
ISO
17497-1 |
0.00 |
0.03 |
0.00 |
0.05 |
0.42 |
0.51 |
|
| |
| |
|
|
|
|
|
|
|
| |
 |
|
