Sonora® Ceiling Baffles

Sonora® Ceiling Baffles are suspended vertically from ceiling trusses or other supports to D-rings or eye hooks along their top edges. All surface faces and edges of the glass fiber core are wrapped in fabric to match or accentuate room décor and coordinate with Sonora® Wall Panels. Ceiling Baffles absorb sound on all sides and edges, and have absorption ratings in sabins per baffle.

Contact to Order


Type 1	Type 2

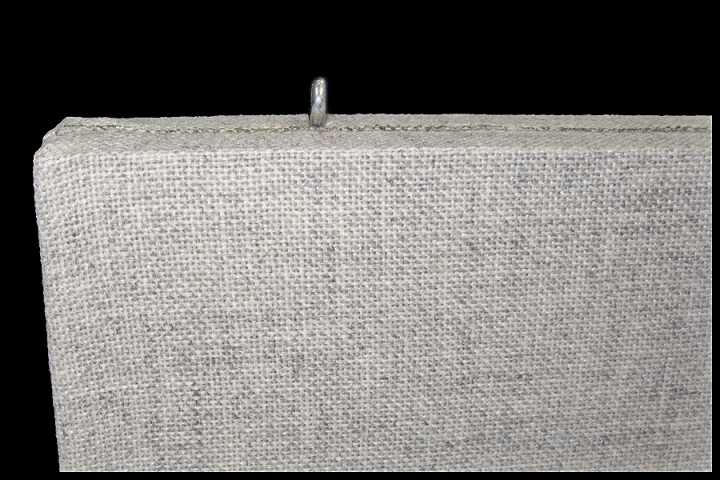

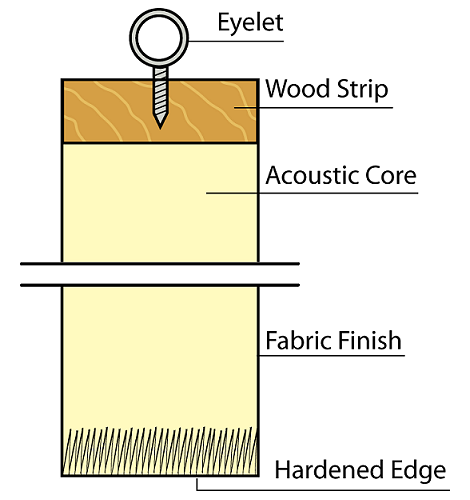

Type 1

(Typical)

Construction:	One Piece of 6-7 PCF fiber core.
Covering:	Covered on all sides with fabric.
Thickness:	1" and 2"
Sizes:	2' (h) x 4' (w) and 2' (h) x 8'(w)
Mounting:	Vertical with Wood Strip and Eyehooks.
Available Colors:	Guilford of Maine FR701 2100 Series (white and eggshell are available at additional cost)

Click on drawing for larger view.

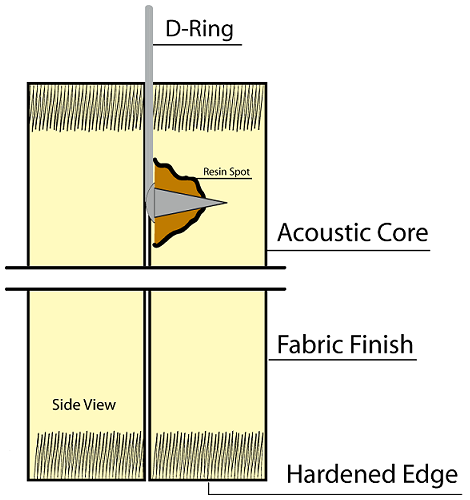

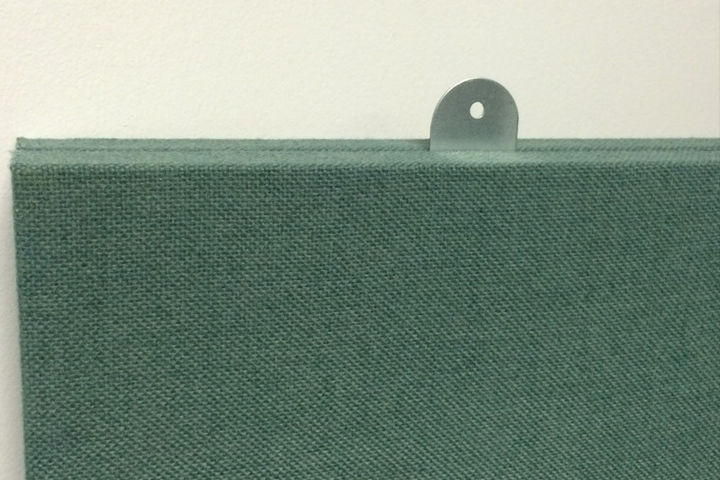

Type 2

(Typical)

Construction:	Two Pieces of 6-7 PCF fiber core.
Covering:	Covered on all sides with fabric.
Thickness:	2" only
Sizes:	2' (h) x 4' (w) and 2' (h) x 8'(w)
Mounting:	Vertically with D-Rings
Available Colors:	Guilford of Maine FR701 2100 Series (white and eggshell are available at additional cost)

Click on drawing for larger view.

Sound Absorption Coefficients - Sabins Per Unit - 24" x 48"
Thickness	125 Hz	250 Hz	500 Hz	1000 Hz	2000 Hz	4000 Hz
1"	4.55	6.20	8.42	12.83	14.35	14.28
2"	4.48	8.00	13.20	17.93	16.98	16.35
