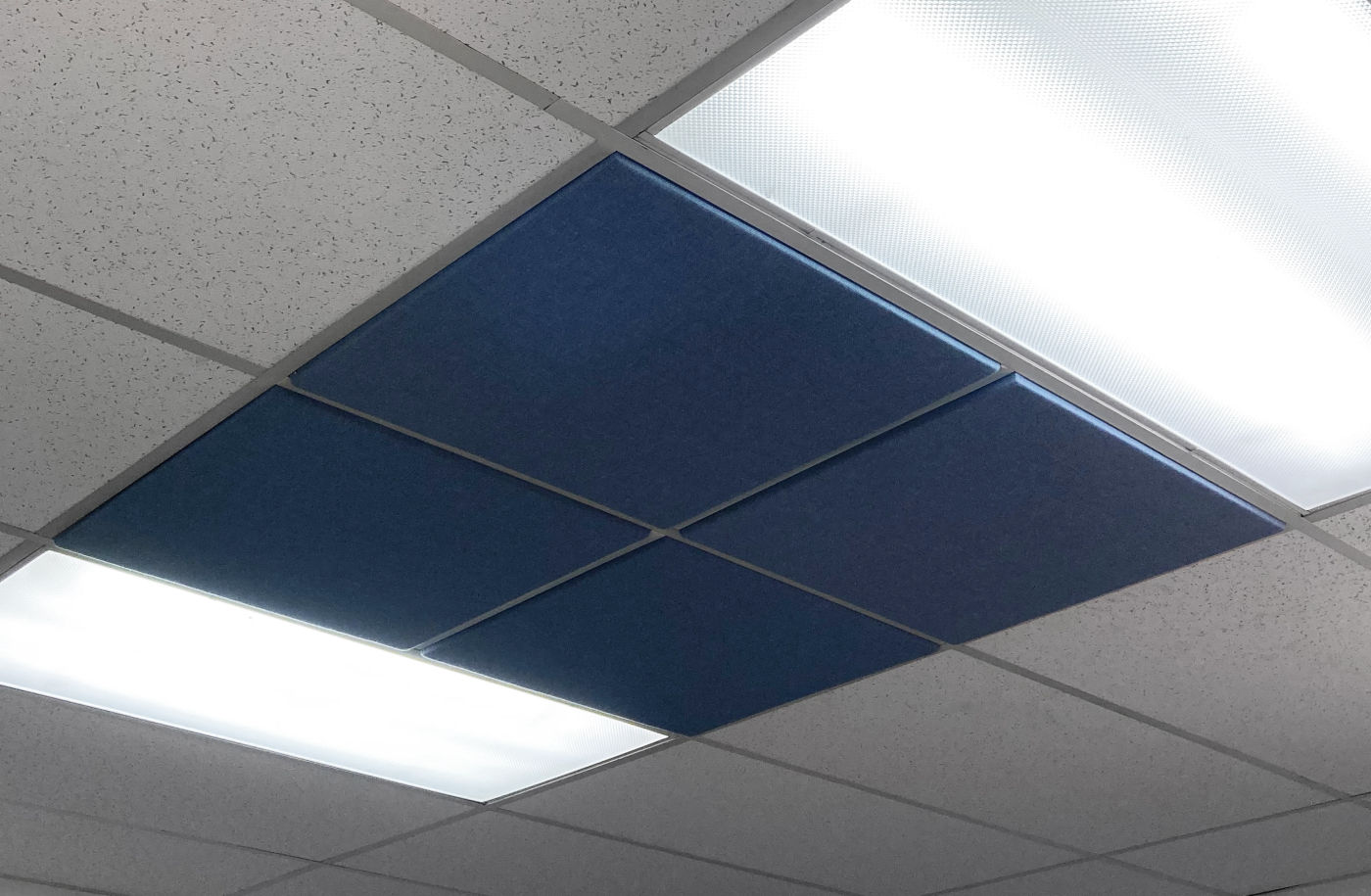

Sonora® Ceiling Tiles for T-Bar Suspended Grids

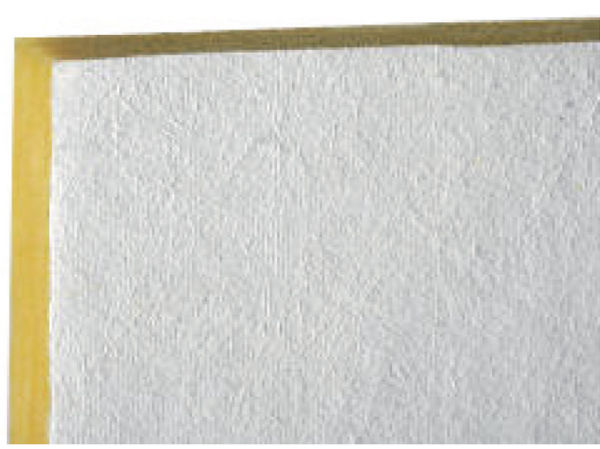

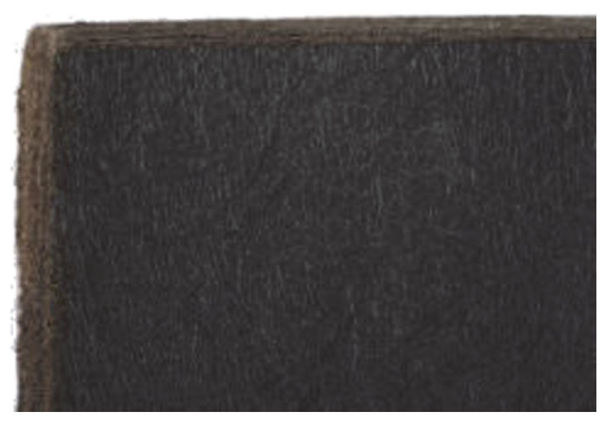

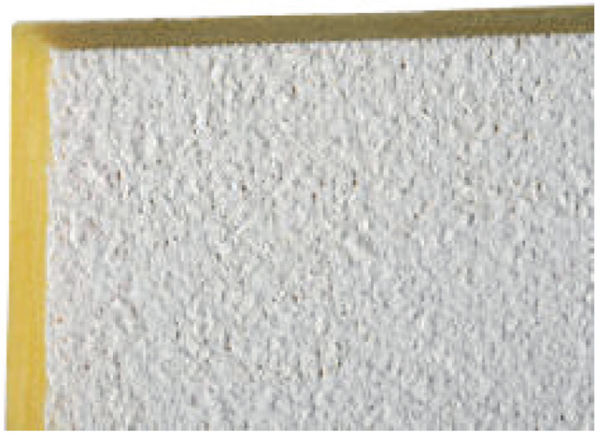

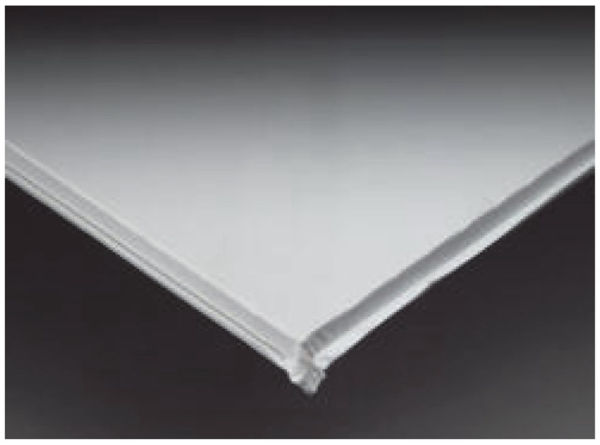

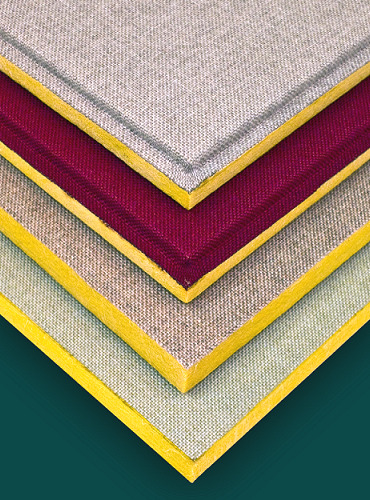

Click photo for larger view:

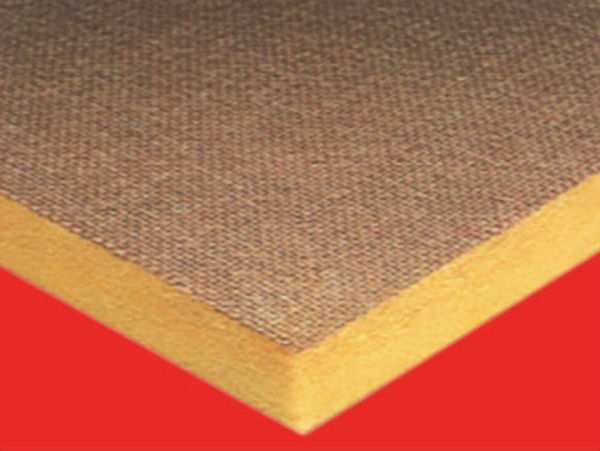

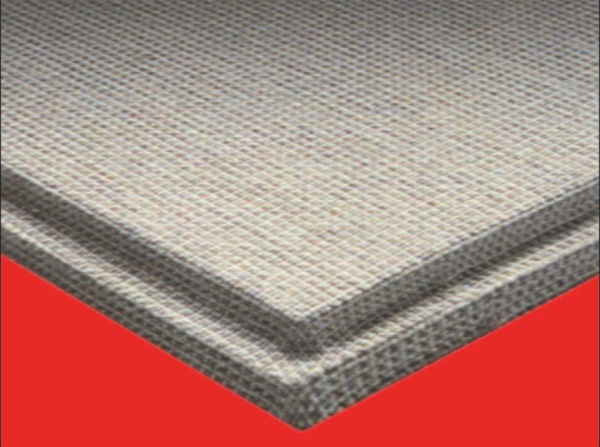

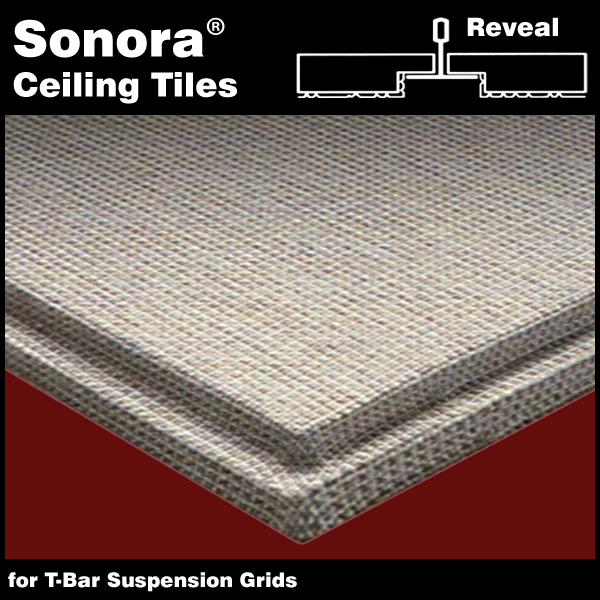

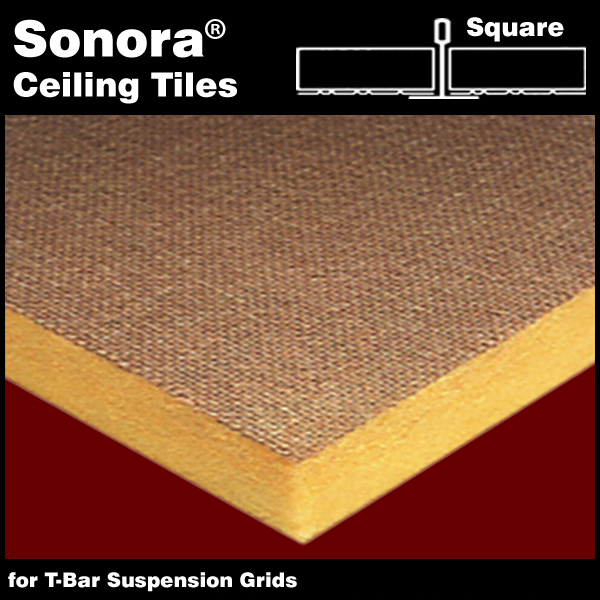

Sonora® Ceiling Tiles are an excellent choice for many ceiling grid applications requiring high absorption. Both Square Cut and Reveal
Cut tiles are constructed from one piece of 6-7 PCF non-combustible
and dimensionally stable glass fiber core.

Available Thicknesses: 1" and 2"

Available Sizes: 2'x2' Nominal or 2'x 4' Nominal
Specify grid type when ordering (9/16 or 15/16)

Available Colors: Guilford of Maine FR701 2100 Series
(white and eggshell are available at additional cost)

Fire Rating: Class A

Sound Absorption Coefficients
Thickness	125 Hz	250 Hz	500 Hz	1000 Hz	2000 Hz	4000 Hz	NRC
1"	0.10	0.32	0.75	1.02	1.09	0.96	0.80
2"	0.45	0.74	1.26	1.29	1.17	1.20	1.10

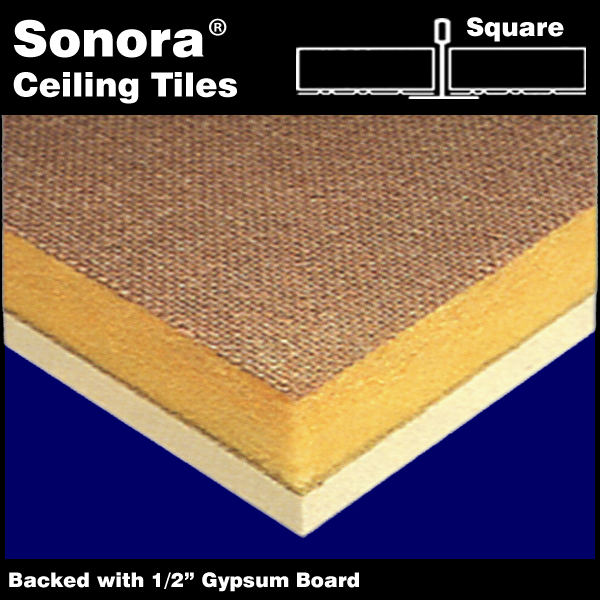

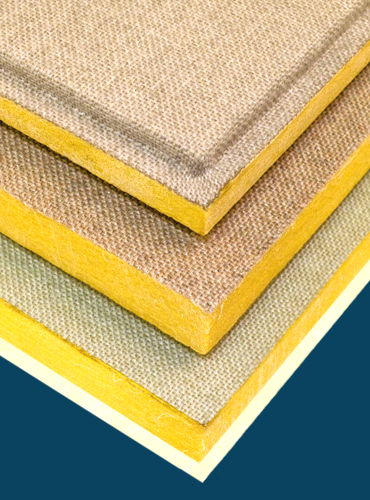

	Sonora® Ceiling Tiles Backed with ½" Gypsum Sonora® Ceiling Tiles backed with gypsum provide both sound absorption and reduced transmission to increase STC. Constructed of 6-7 PCF glass fiber core laminated with gypsum board. Thickness & Size Available: 1½" Thickness in 2'x2' Nominal Tile Available Colors: Guilford of Maine FR701 2100 Series

Sonora® Ceiling Tiles - Click photo for larger view:
