Sonora® Lite - PVC Encapsulated Panels

|


Sonora® Lite PVC Encapsulated Panels provide excellent absorption when Cloudscape Baffles and Banners are not a practical solution. Sonora PVC Encapsulated Panels are a cost-effective way to reduce overall reverberation and noise buildup.

Sonora PVC Encapsulated panels are installed directly with washer plates and are ideal for ceiling spaces that have electrical, mechanical and fire suppression systems close to the deck.

Sonora PVC Encapsulated panels are a constructed of a semi-rigid fiberglass core that is self-supporting and will not sag over time. It can be covered in acoustically transparent PVC film or nylon sailcloth.

Request a Quote

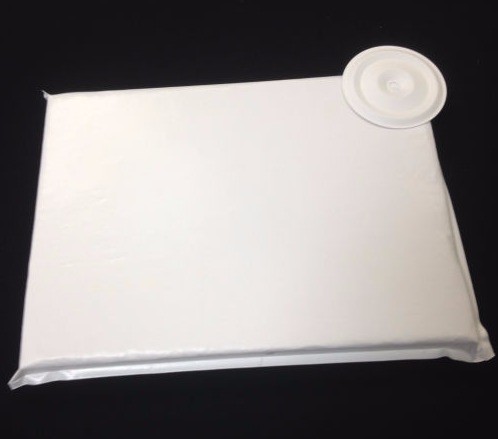

Sonora® Lite PVC Encapsulated Wall Panel with Washer Plate.

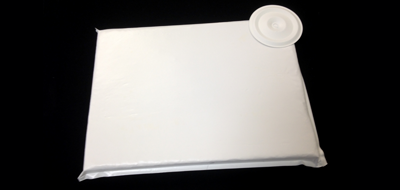

Sonora® Lite PVC Encapsulated Panel with Washer Plate.

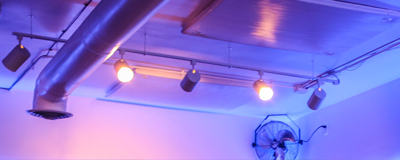

Sonora® Lite PVC Encapsulated Panels installed on ceiling.

Mounted with 3" diameter washer plates - painted to match.

Composition:   3 lb. / cu. ft. or 1.65 lb. / cu. ft. Acoustical Fiberglass fill with PVC covering.

Thickness:   1" or 2" thick

Fire Rating:   Class A - ASTM E84 25/0/50

Please Contact Acoustics First with your project details for assistance with all your acoustic needs.

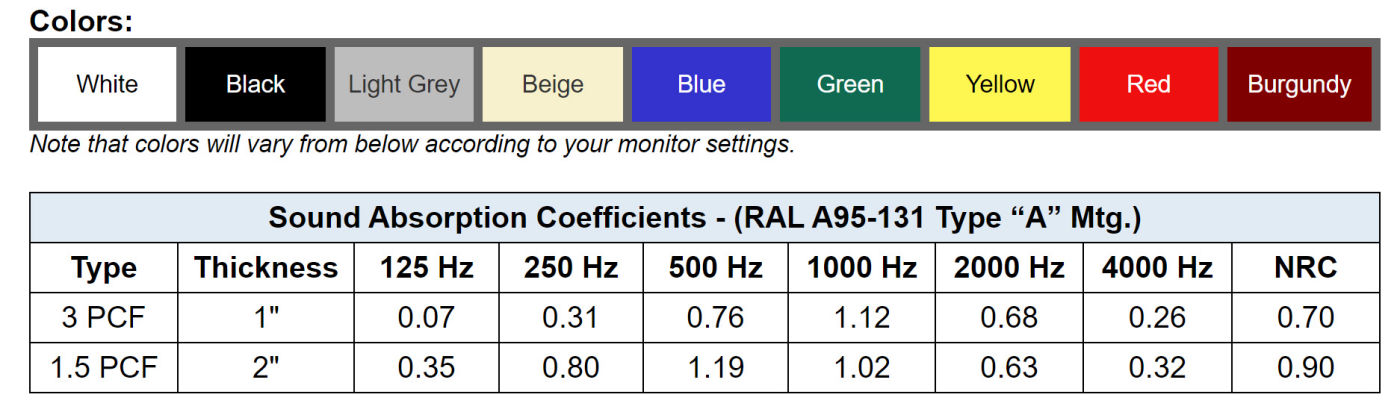

Colors:
White Black Light Grey Beige Blue Green Yellow Red Burgundy

Note that colors will vary from below according to your monitor settings.


Sound Absorption Coefficients - (RAL A95-131 Type “A” Mtg.)
Type Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
3 PCF 1" 0.07 0.31 0.76 1.12 0.68 0.26 0.70
1.5 PCF 2" 0.45 0.82 1.17 1.08 1.05 1.09 0.90
