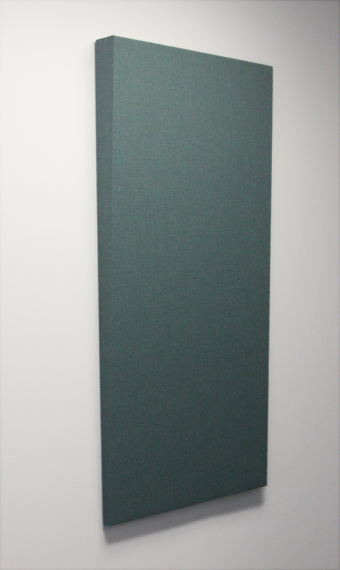

Sonora® Sound Shim™

Application
Sonora® Sound Shim™ wall panels are used for acoustical absorption or directed reflection combined with strong design elements. Sound Shims™ are suitable for recording and broadcast studios and other critical listening environments.

Construction
The core construction is a ¾” dimensionally stable 6-7 PCF glass fiberboard attached at an angle to an MDO plywood backer and ribs, covered face and edges with a layer of 16-20 PCF molded fiberglass for absorption, or 1/16” un-perforated copolymer face sheet for high frequency reflection. Finishes are completely adhered to the face of the panel and returned to the back for a full finished, fully tailored edge.

Edge Detail
All edges are square and covered with molded fiberglass.

Standard Mounting
Standard mounting is Z-Clip to Wall Bar. Wall Bar to Wall Bar or a combination of Wall Bar on the top, and Velcro® on the bottom is also available.

Acoustical Performance
Sonora® Sound Shim™ Panels provide excellent acoustical performance for auditoriums, theaters, or anywhere sound absorption or directed reflection with low frequency absorption is required.

Fire Rating
Components, with the exception of the MDO plywood, have been tested according to ASTM E 84 and have a flame spread of 25 or less

Size:
Maximum Size: 16 square feet
Maximum Length: 8’
Maximum Width: 2’
Minimum Depth: 1½”
Standard Thickness: 1-1/2" to 3-1/2".

Colors: Guilford of Maine FR701 Style 2100
(white and eggshell are available at additional cost)

Contact to Order

Sound Absorption Coefficients
	125 Hz	250 Hz	500 Hz	1000 Hz	2000 Hz	4000 Hz	NRC
Absorptive	0.29	0.70	0.98	1.05	1.04	1.10	0.95
Reflective	0.43	0.28	0.21	0.24	0.28	0.29	0.25
