Sound Channels® Acoustical Wall Covering

|
Acoustical Fabric for Vertical Surfaces
Sound Channels® acoustical wall fabric is a dimensional fabric that offers excellent acoustical properties, unmatched fade resistance, and a fire/smoke retardant Class A rating.  Sound Channels® is resistant to moisture, mildew, rot, bacteria, and is non-allergenic.   Produced with no VOC’s (volatile organic compounds), ODS’s (ozone depleting substances), heavy metals or formaldehyde, it's the perfect acoustic fabric for offices, classrooms, conference centers or any area where speech intelligibility is a critical factor.

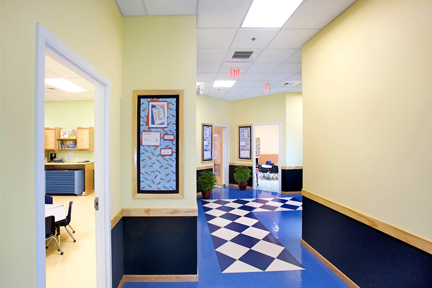

Sound Channels used under chair rail

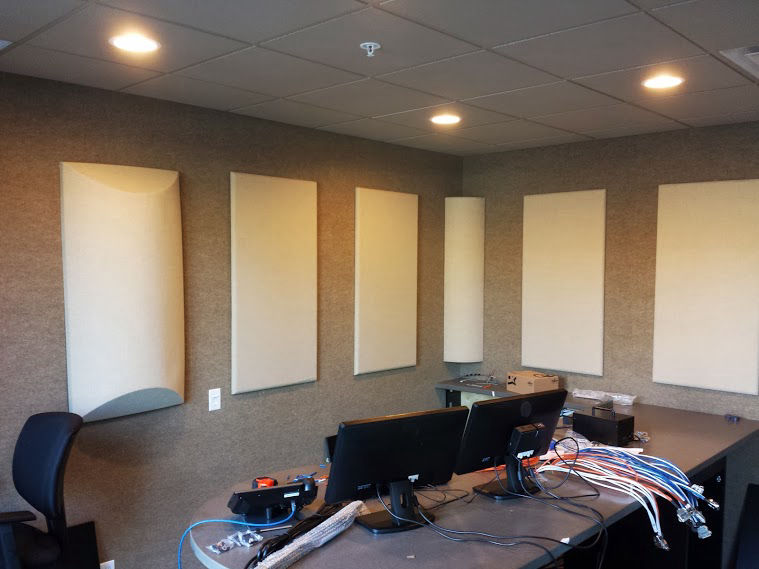

Sound Channels® Wall Covering
Unlike other wall fabric products that are tested "over acoustical board", the acoustical specifications for Sound Channels® are for the fabric applied directly to a solid wall surface.

Sound Channels® has been tested for toxicity in accordance with Pittsburgh Protocol and is no more toxic than wood (LA method)


Request a Quotation


Description

Product Code

Price

Sound Channels® Acoustical Wall Fabric, 54" x 33 yard bolt SCBT $ 723.00 / BOLT
Sound Channels® Acoustical Wall Fabric, 54" x 36", Single Yard SCYD $ 28.00 / YARD
Please Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.

     Technical Information

COLOR CHART:

INSTALLATION GUIDE:

 PDF of Installation Instructions


Sound Absorption Coefficients
Measurements are for fabric alone applied directly to ½" gypsum board
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
0.03 0.04 0.15 0.24 0.31 0.38 0.20
NRC of 0.60 when applied over acoustical backer board.


Technical Specifications

Backing: Fusible Clear Latex

100% Recyclable

VOC Free

Made In USA

Composition: 100% Solution Dyed Post-Consumer Recycled Polyester
Flame Spread: 15
Smoke Developed: 15
Passes Corner Burn: NFPA 265, UBC 8-2 (formerly UBC 42-2)
Installation: PDF of Installation Instructions
Tear Strength: 23# Minimum PSI / ASTM D-2261
Tensile Strength: 100# Minimum PSI / ASTM D-1682
Flammability: Class A in accordance with ASTM E-84, MEA #276-90M and NY DOS #09975-92085-4005
Highlights: Long Wearing, Low Static Properties, Easy to Clean, Velcro® Compatible
Applications: Partitions, Panels, Wall Coverings, Displays, and more!

Features
  • Lightweight Acoustic Fabric
  • Easy to install
  • Class A
  • Passes Corner Burn Test
  • Available in Many Colors
  • Durable / Abuse Resistant
  • Improves Speech Intelligibility
Applications
  • Conference Rooms
  • Theaters
  • Hospitals
  • Municipal
  • Office Partitions
  • Schools
  • Hallways
  • and more...

Roll Size:
33 Linear Yards x 54" Wide
Weight:
23 oz. per Linear Yard
View Color Chart
Sounds Channels® Color Chart


     Color Chart

Click on swatch graphic for larger view.
*Note that colors will vary according to your monitor settings.
Color swatch chart available.  Contact us for color sample swatches.

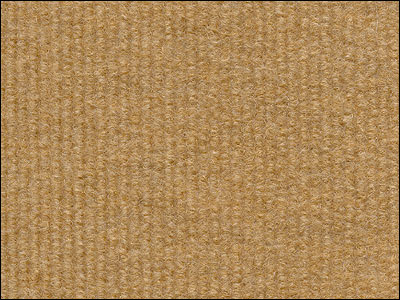

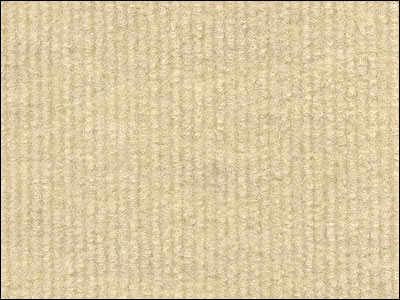

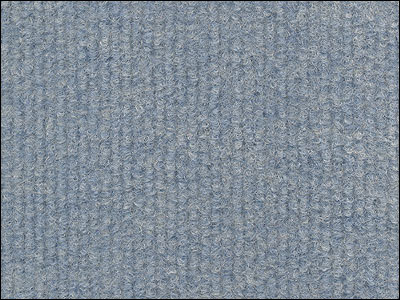

Agean 19-93 Amber 24-15 Antique 24-11 Beach 19-87 Black 19-33

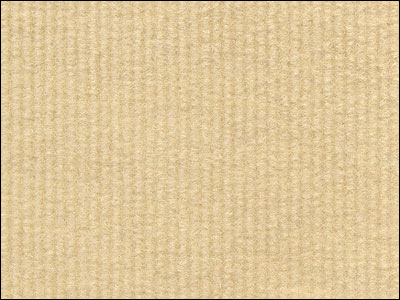

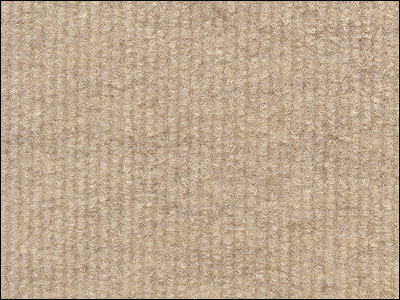

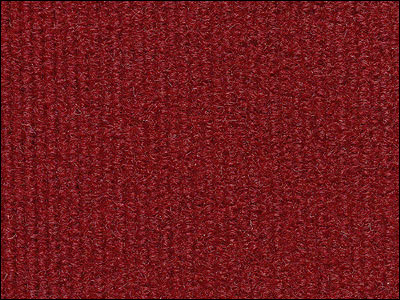

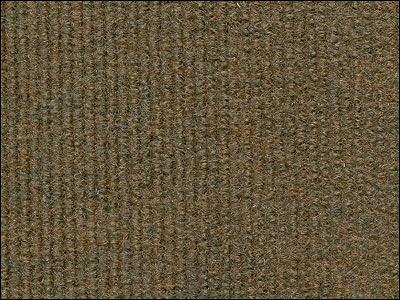

Bloodstone 24-20 Butternut Tree 24-27 Camouflage 24-53 Champagne 24-54 Charcoal 19-57

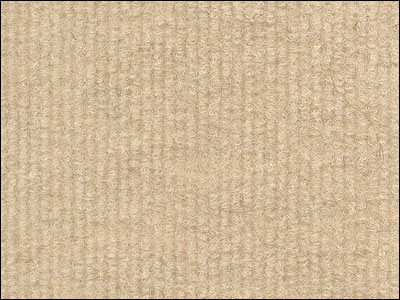

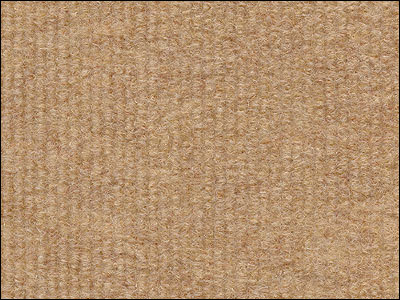

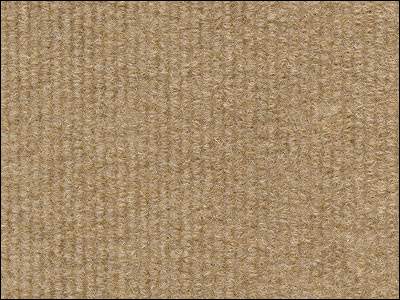

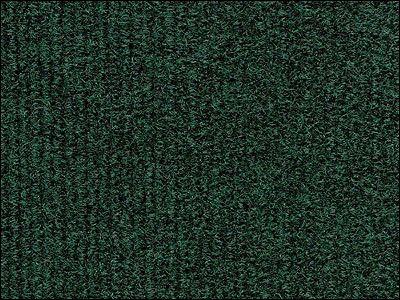

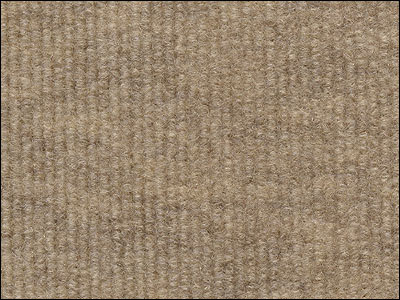

Chinese Coral 19-10 Cocoa 24-50 Cream 19-07 Emerald 19-21 Fawn 19-19

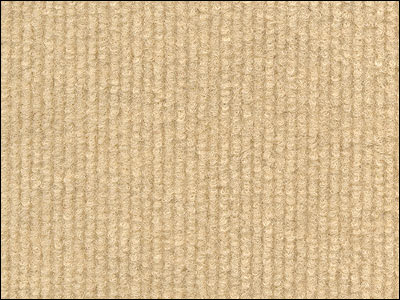

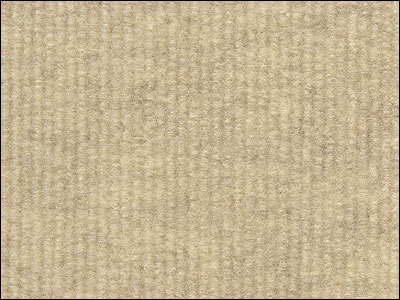

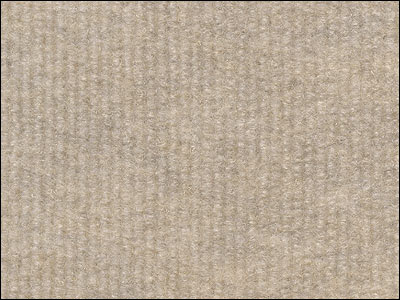

Flagstone 19-22 Froth 24-01 Gunmetal Grey 24-06 Hazey Day 24-07 Ivory 19-02

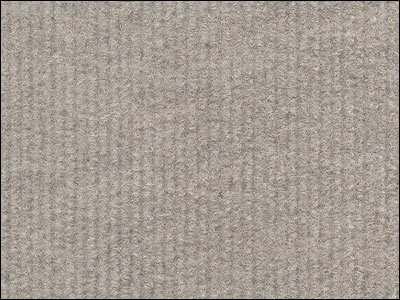

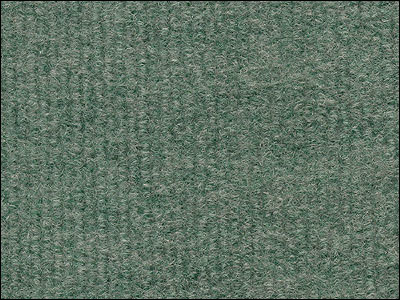

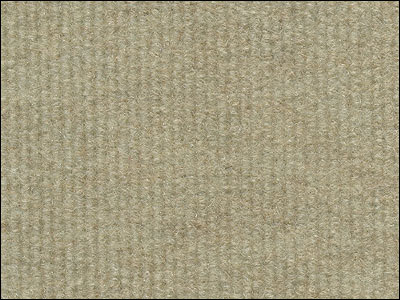

Lichen 24-25 Marble 19-61 Mist 19-04 Moss Green 19-15 Navy 19-27

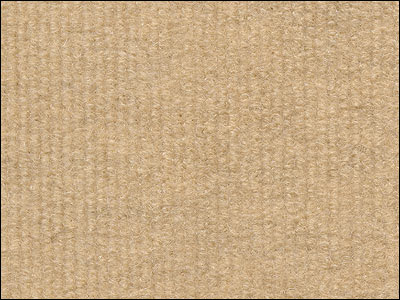

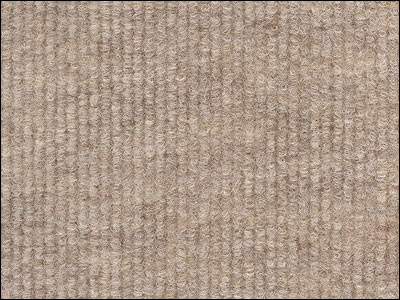

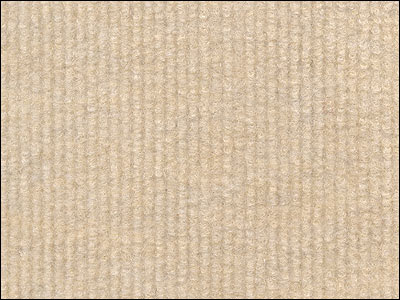

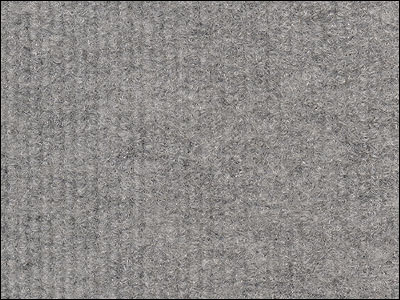

Ocher 19-51 Oyster Shell 24-12 Parchment 24-03 Pewter 19-58 Pumice 19-28

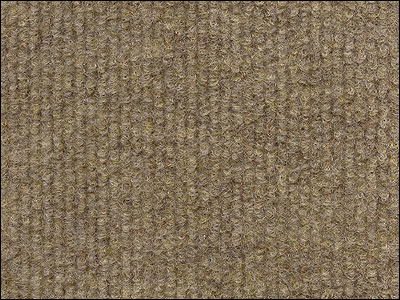

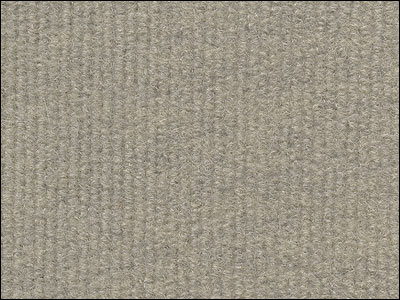

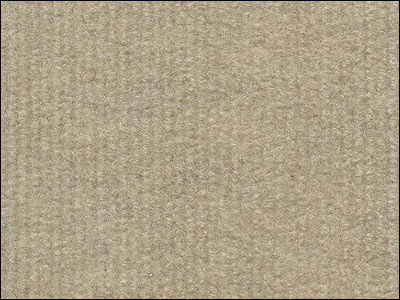

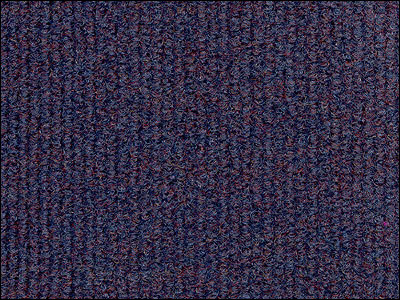

Putty 19-53 Ruby 24-23 Sage 19-32 Sandalwood 19-08 Sapphire 24-19

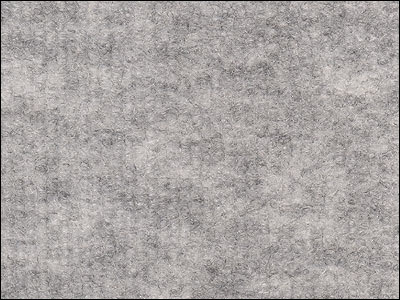

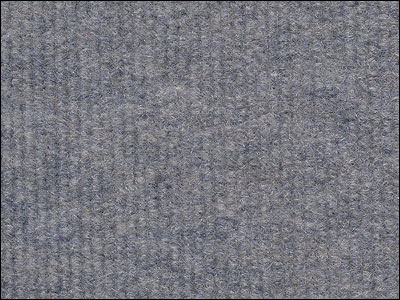

Silver 19-16 Slate 24-14 Sumatra 19-85 Taffy 19-17 Taupe 19-62

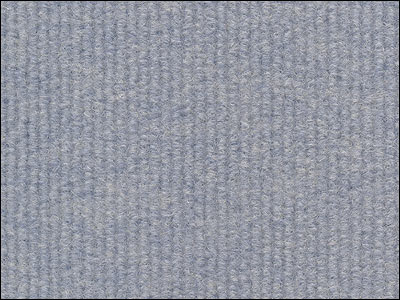

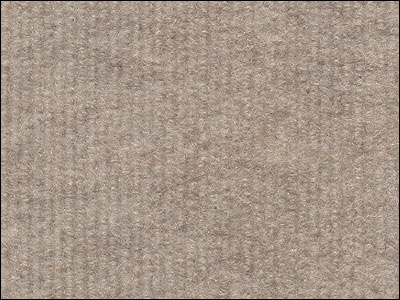

Ash 19-05 (Discontinued) Cornflower 19-14 (Discontinued)
